UV / Vis Monitoring

All s::can spectrometer probes operate using the same measuring principle: Spectrometry. The spectrometer probes are the first and only instruments in the world that can measure optical spectra from 190 to 750 nm directly in liquid media. The substances contained in the medium weaken a light beam emitted by a lamp that moves through the liquid. After contact with the medium its intensity is measured by a detector over a range of wavelengths specific to the application.

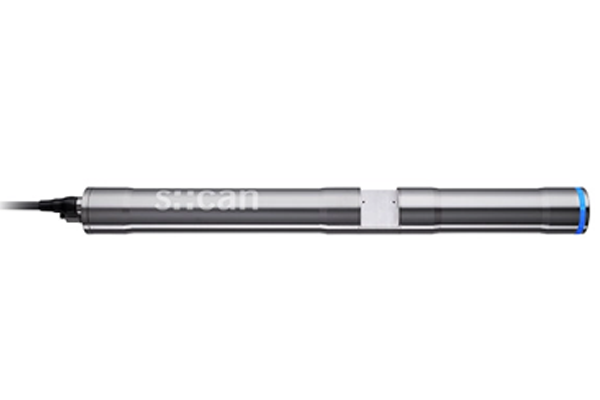

spectro::lyser® V3

IoT enabled UV-Vis spectrometry

Measures TSS, TS, turbidity, color, TOC, DOC, BOD, COD, NO3-N, NO3, HS-, O3, Chl-a, BTX, UV254, Fingerprints, Spectral alarms & Temperature.

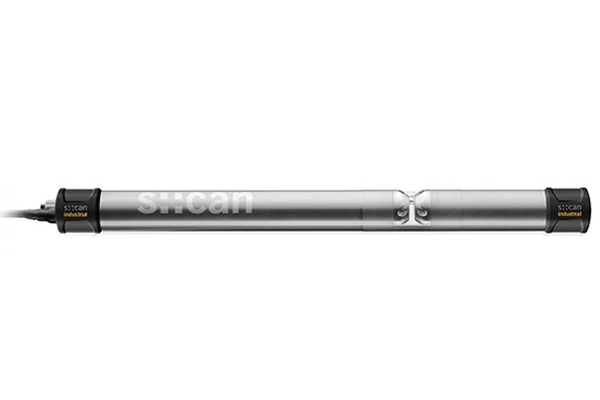

spectro::lyser® titanium

For Corrosive Applications

Has a rugged design with titanium grade 2 housing which is ideal for highly corrosive industrial & seawater installations.

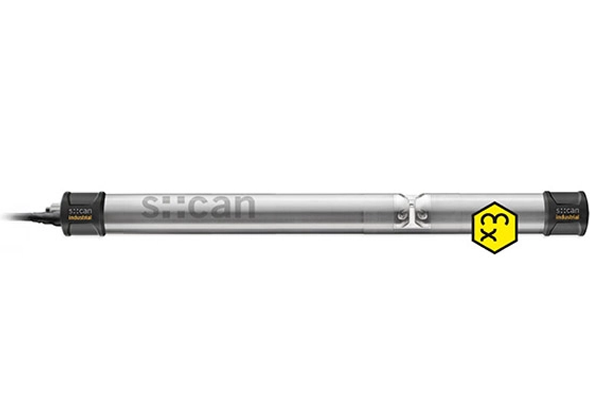

spectro::lyser® ATEX

For Dangerous Environments

Explosion proof specification according to RL 2014/34/EU, TÜV-A 12ATEX0001 X; II 2 G Ex db IIC T6 Gb; QAN: TÜV-A 22ATEX3001Q.

spectro::lyser® UV

Measure distinct UV-Wavelengths

The spectro::lyser® UV offers the customer the possibility to measure distinct UV-Wavelengths for determining specific pollutions.

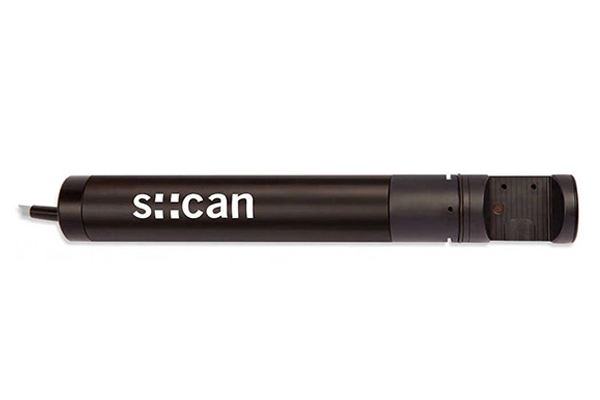

i::scan

Miniature multi-parameter spectrophotometer

i::scan combines the high performance of a multi wavelength spectrophotometer with even lower costs than simple photometers.

carbo::lyser V3

Measurement of the organic carbon load

deal for the measurement of the organic carbon load, represented by parameters like UV254, TOC, DOC, COD, BOD, TSS, Turbidity.

ozo::lyser V3

Measurement of ozone in water

ozo::lyser V3 is optimized to determine concentrations of ozone dissolved in water online and InSitu. It offers an attractive alternative to classical electrochemical ozone sensors.

nitro::lyser V3

Measure nitrate and turbidity/solids concentration

The nitro::lyser is used in applications that range from (ultra) pure water in the μg/l range up to industrial waste water in the g/l range.

multi::lyser V3

Measures organic carbon & nitrate

The multi::lyser is ideal for surface water, ground water, drinking water, wastewater and offers an optimum of cost effectiveness and performance.

uv::lyser V3

Measures turbidity or TSS

Measures Turbidity or TSS & up to 4 freely chosen wavelengths between 190 & 720 nm for applications in surface, ground, drinking & waste water.
